CNCTOPBAOS Rotation 5th Axis Rotary Table,CNC 4th Axis A Axis B C Axis Dividing Head,Waterproof Nema23 Stepper Motor,No Backlash Harmonic Reducer Gearbox 50:1 for CNC Router Engraving Milling Machine
Product details
| Management number | 215624370 | Release Date | 2026/04/12 | List Price | $220.00 | Model Number | 215624370 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

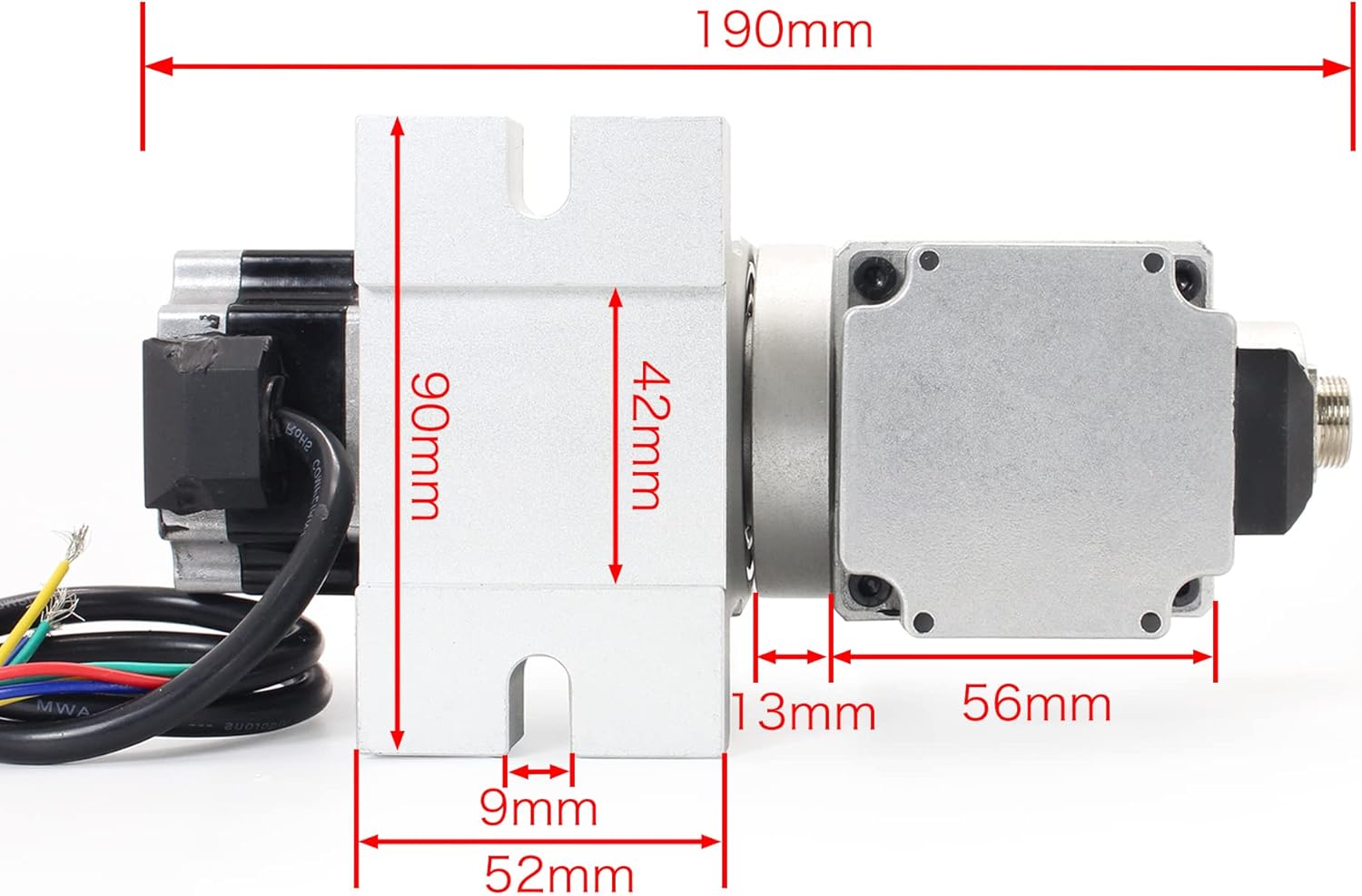

- Specifications: Center height: 73mm(2.87"); Bench Diameter: 60mm(2.36"); Total height: 115mm(4.52"); 4th A Axis Speed reducing ratio: 50:1; 5th C Axis Speed reducing ratio: 50:1; Size: 170mmx90mmx115mm(6.69x3.54x4.52"); Net Weight: 2.6 KG/5.7 LB

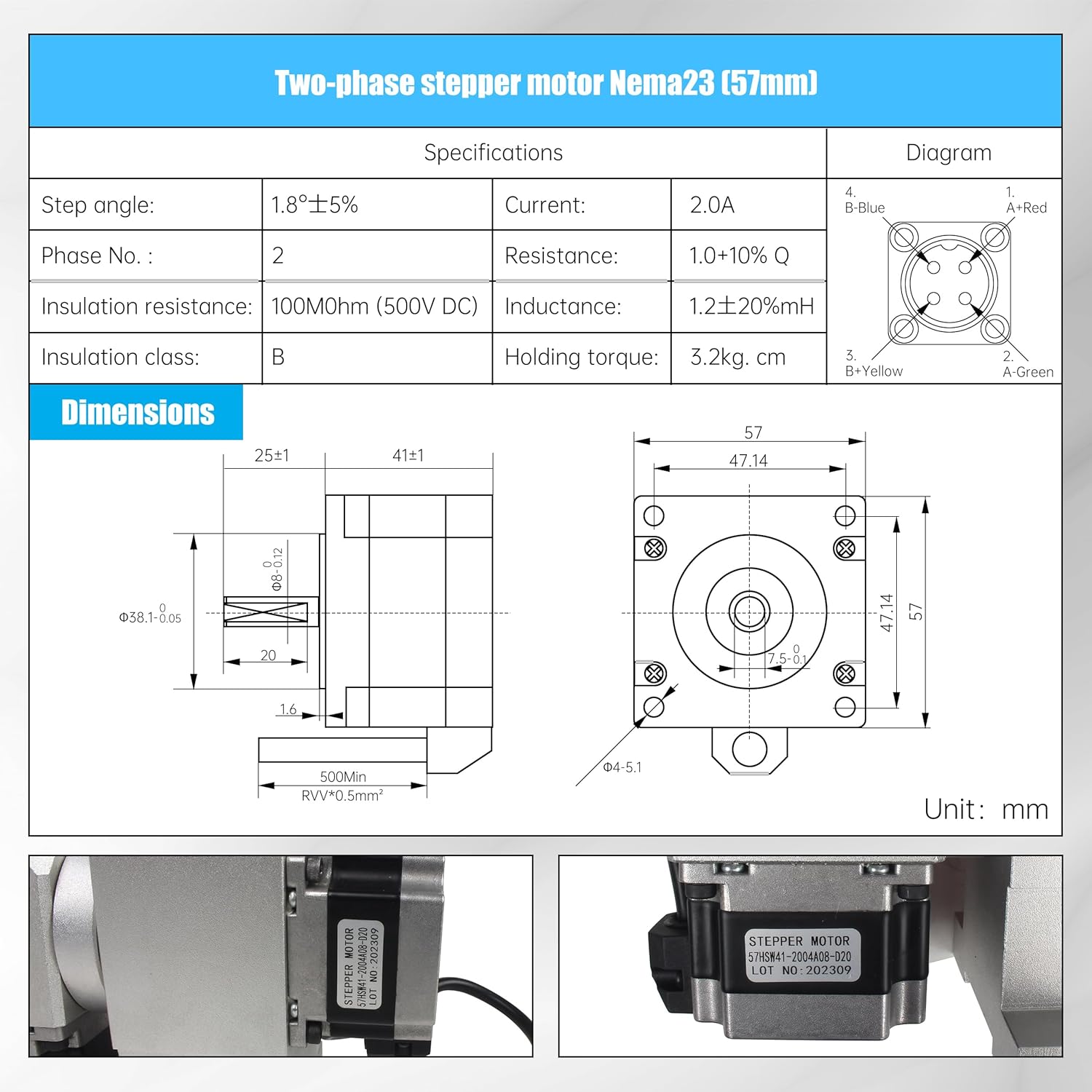

- Two Nema23 Stepper Motor: Motor Type: Hybrid Stepper; Phase: 2-phase; Motor Size: 57x57x41mm; Step Angle: 1.8°; Holding Torque: 3.2kg.cm/45oz-in; Rated Current: 2A; Shaft diameter: 8mm; Number of Leads: 4-wires

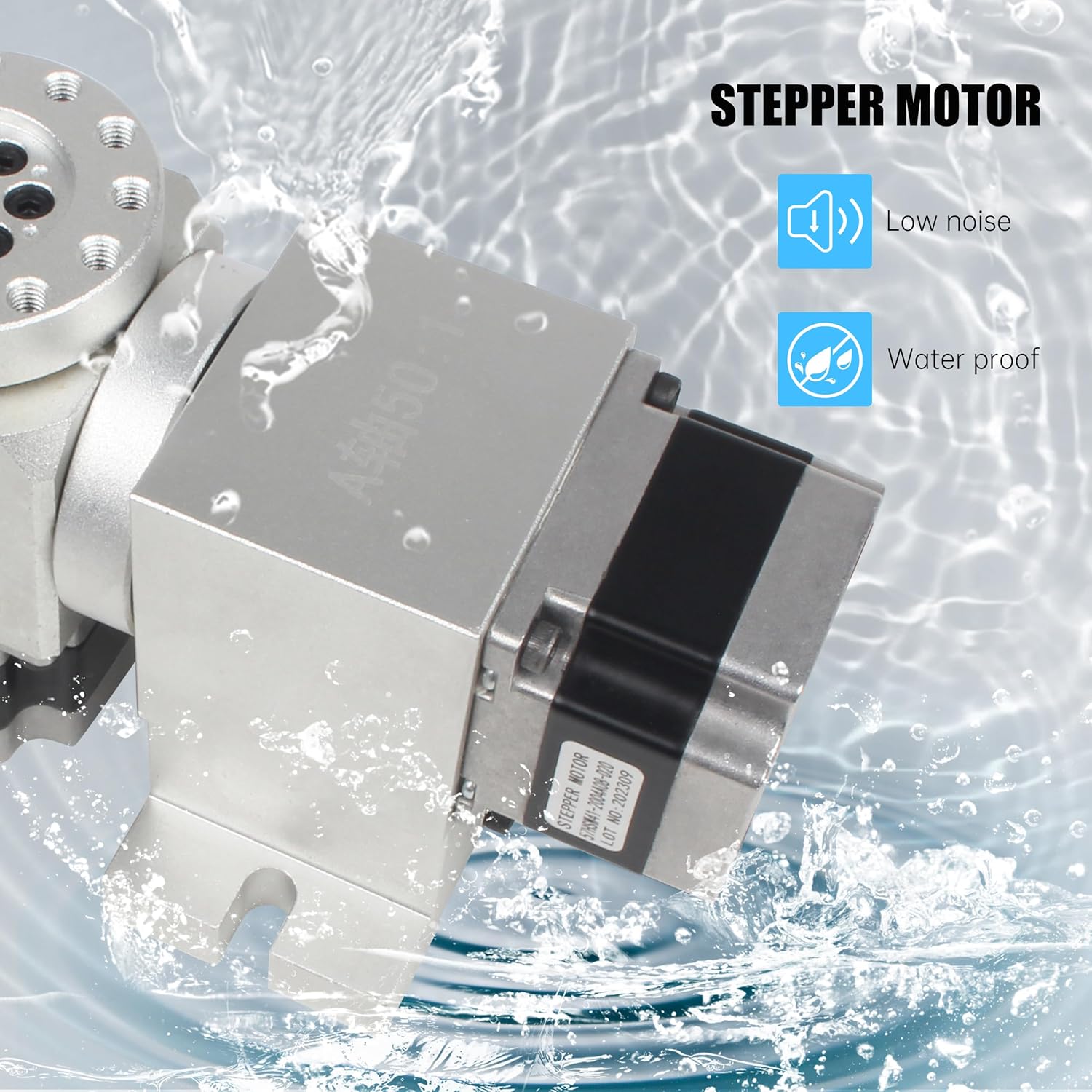

- Advantages of Waterproof Motor: Using two waterproof stepper motors makes it safer to use; The motor is made of sturdy and durable metal; The perfect combination of rubber and rotor makes the internal structure more stable, reduces engine vibration and noise during operation, and makes the motor run quieter; The coil adopts pure copper enameled wire to ensure that long-term operation will not cause excessive temperature
- Harmonic Gapless Gearbox: Adopting a harmonic gapless gearbox, the product has higher precision, no backlash, high rigidity, high efficiency, stable structure, smooth operation, made of high quality aluminum alloy,anti rust coating process, fine workmanship, excellent forging process, and maximizes service life
- Application: Widely used in 5 Axis CNC Machining Centers, CNC Router, Milling Machine, Industrial Automation, Manufacturing, Engraving machines, Lathes, Three-dimensional Engraving,CNC Cutting Drilling Machine Accessories etc
| Model | S23 |
|---|---|
| Brand Name | CNCTOPBAOS |
| Item Weight | 3.24 Kilograms |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Aluminum |
| Shaft Diameter | 8 Millimeters |
| Item Dimensions W x H | 2.24"W x 2.24"H |
